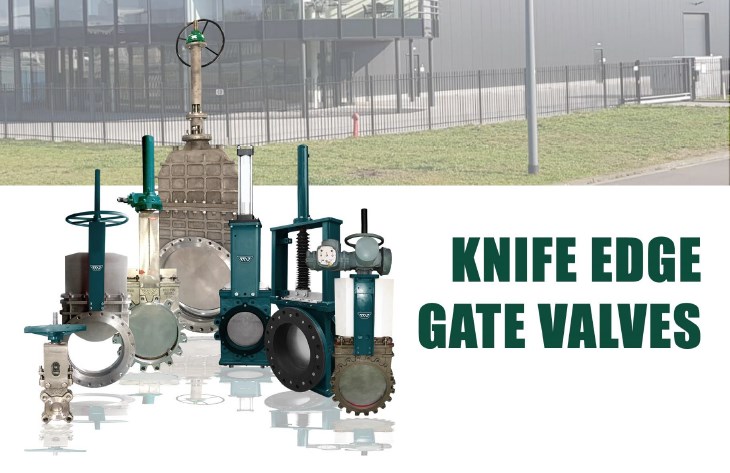

Knife Gate Valves

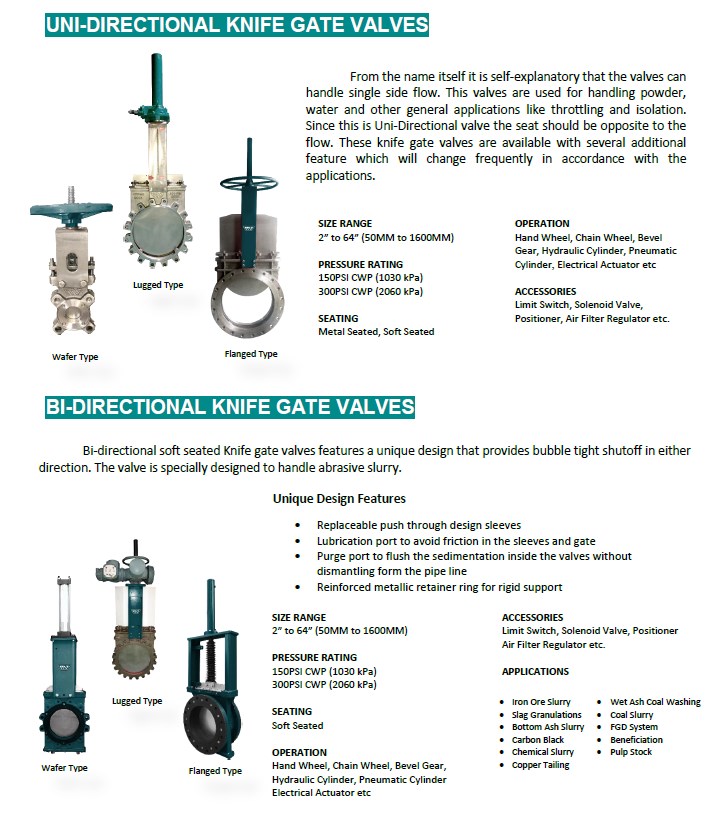

KNIFE GATE VALVES FOR SPECIAL APPLICATIONS
Maverick Valves Knife gate valves are specially designed and manufactured according to MSS SP 81, MSS SP148 standards as well as customized design to meet the worst working conditions in Oil & Gas, Chemical, Water and sewage treatment plant, Metal and mining, Paper and pulp to handle very critical medias and abrasive slurries.

The compact design of valves facilitates light weight, minimum space for installation, easy for operation and maintenance. The bottom of the gate is designed to like knife type edge which can cut through the Semi-Solid and sludge media which avoid clogging. The knife gate valves are available in variant metallurgy and trim option to suit critical applications.

RANGE OF MATERIAL OF CONSTRUCTION

  • CAST IRON
  • DUCTILE IRON
  • WCB
  • CF8
  • CF8M
  • CF3M
  • CG8M
  • SMO254
  • DUPLEX 2205
  • SPECIAL MATERIALS ON REQUEST

RANGE OF SEAT MATERIALS

  • EPDM
  • VITON
  • NATURAL RUBBER
  • PTFE
  • CFT
  • GFT
  • INTEGRAL / REPLACEABLE METAL

PRESSURE RATING

  • 75 PSI
  • 100 PSI
  • 150 PSI
  • 300 PSI
  • 600 PSI

INDUSTRIES SERVED

Maverick Valves provide solution for several industries like Oil & Gas, Chemical, Mining, Paper & pulp, Water & sewage treatment & cement plant. We meet these challenges, by refining the Knife gate valves quality and design. We have developed a fully advanced range of Knife gate valves to meet the customer’s expectation in all sectors. We analysed and understood the customer needs for valves in every sector which helps us to promise our customer for more production with less downtime in an economical way.
