Size |
NPS 1/2″- 16″ and from 1 13/16″ to 9″ |
|
Pressure |
Class 150 – 2500 and from 2000Psi to 15000Psi |
|
Material |
A105N, LF2, F304L, F316L, F347, F51, F55, INC625, CF3/CF3M, CF8/CF8M, WCC, LCC, 5A, 6A, CW6MC |
|
Design & Manufacture Std. |
API 6A |
|
Face to Face Std. |
API 6A |
|
End Connection Std. |
ASME B16.5, Norsok, Hubs, Pups |
|
Test standard |
API 598, ISO5208 , API6A |
|
Structure Type |

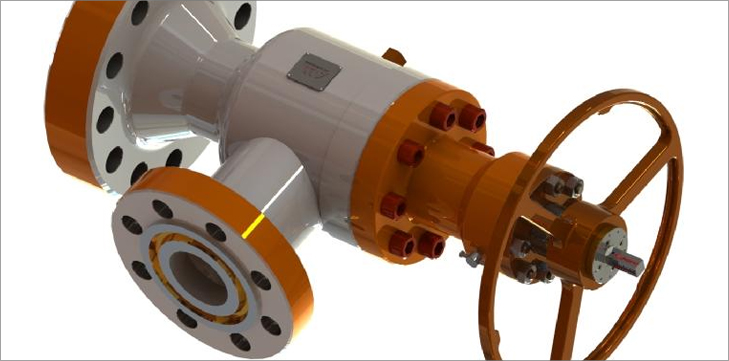

Rotating disk in solid tungsten with cobalt or nickel binder and CV from 0.01 to 650 and beam diameter up to 4″ |
|
Operated Way |
Lever, Gear, Pneumatic, Hydraulic, Electric |
|
Size |
NPS 1/2″- 7″ and from 1 13/16″ to 7″ |
|
Pressure |
Class 150 – 2500 and from 2000Psi to 10000Psi |
|
Material |
A105N, LF2, F304L, F316L, F347, F51, F55, INC625, CF3/CF3M, CF8/CF8M, WCC, LCC, 5A, 6A, CW6MC |
|
Design & Manufacture Std. |
API 6A |
|
Face to Face Std. |
API 6A |
|
End Connection Std. |
ASME B16.5, Norsok, Hubs, Pups |
|
Test standard |
API 598, ISO5208 , API6A |
|
Structure Type |
Rotating disk in solid tungsten with cobalt or nickel binder and CV from 0.01 to 650 and beam diameter up to 4″ |
|
Operated Way |
Lever, Gear, Pneumatic, Hydraulic, Electric |
|
Size |
NPS 1/2″- 4″ and from 1 13/16″ to 4 1/16″ |
|
Pressure |
Class 150 – 2500 and from 2000Psi to 15000Psi |
|
Material |
A105N, LF2, F304L, F316L, F347, F51, F55, INC625, CF3/CF3M, CF8/CF8M, WCC, LCC, 5A, 6A, CW6MC |
|
Design & Manufacture Std. |
API 6A |
|
Face to Face Std. |
API 6A |
|
End Connection Std. |
ASME B16.5, Norsok, Hubs, Pups |
|
Test standard |
API 598, ISO5208 , API6A |
|
Structure Type |
Rotating disk in solid tungsten with cobalt or nickel binder and CV from 0.40 to 250 and beam diameter up to 2″ |
|
Operated Way |
Lever, Gear, Pneumatic, Hydraulic, Electric |
